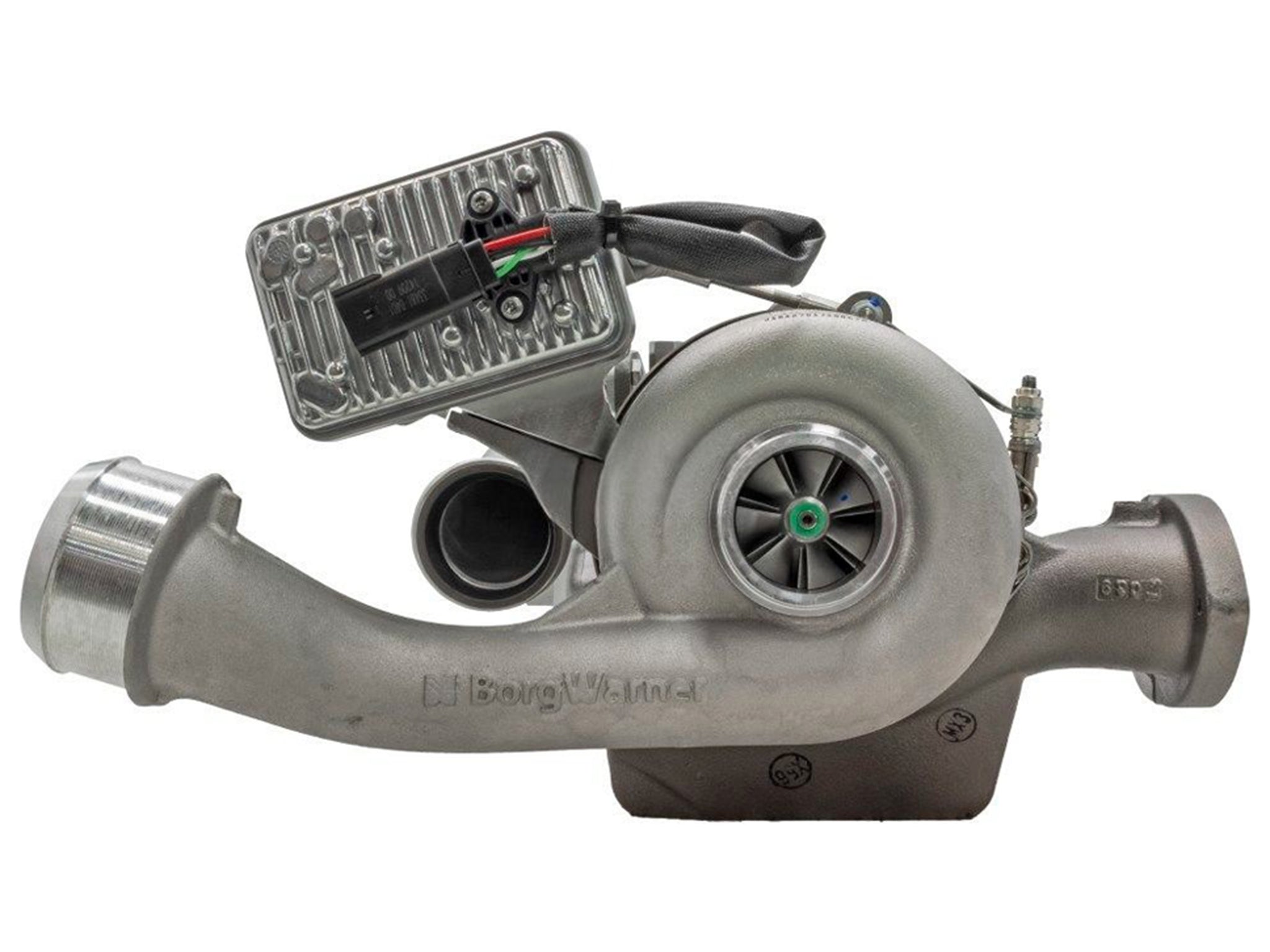

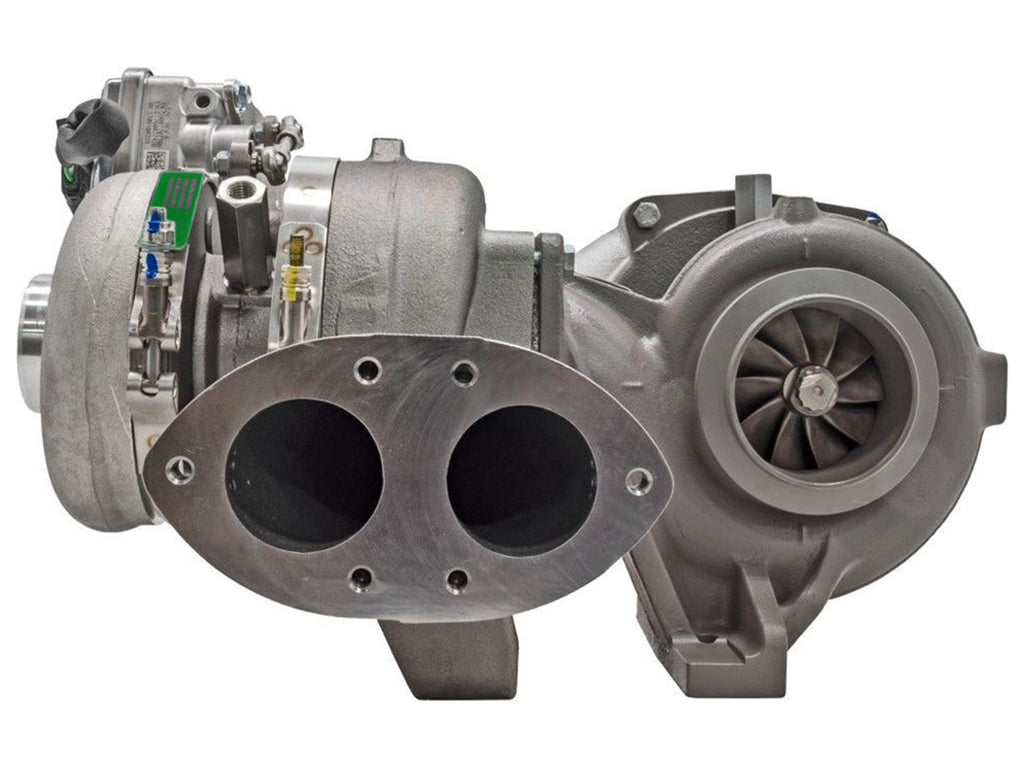

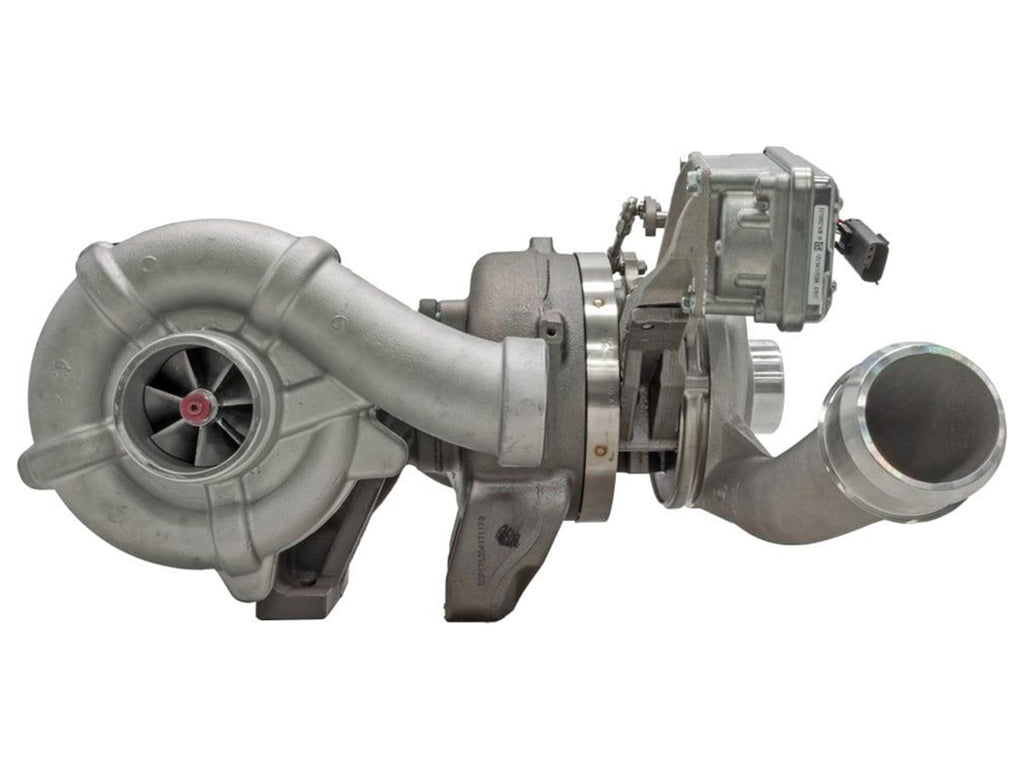

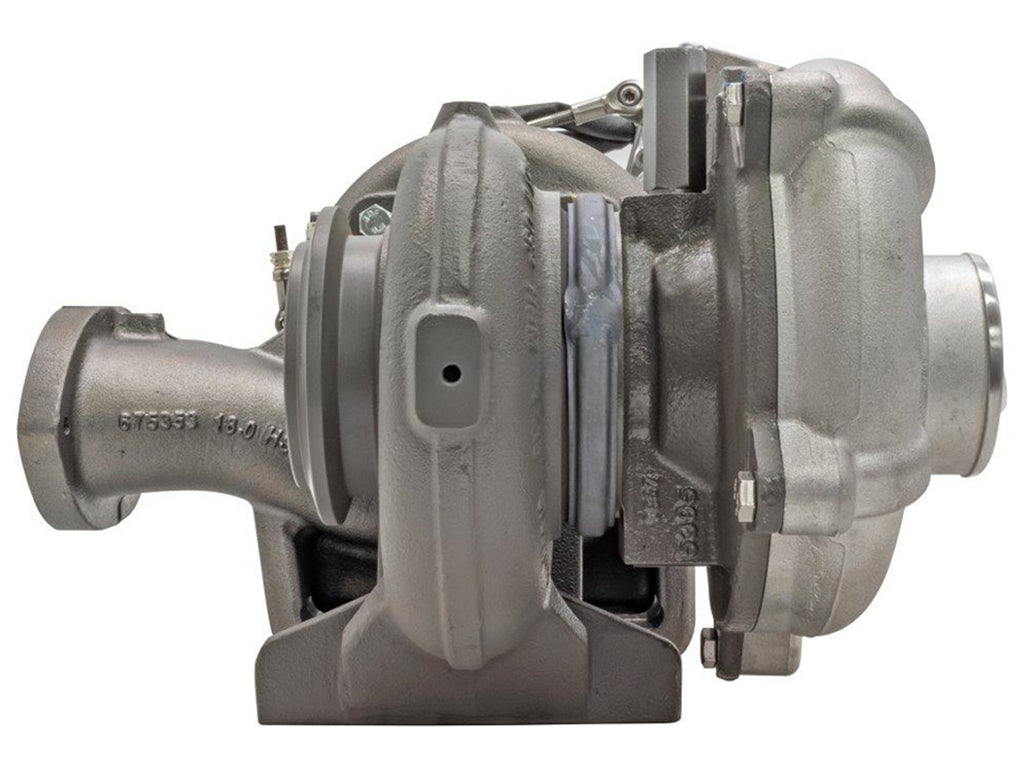

BV70 V2S Turbo Ford Truck V114 Power Stroke 6.4L 12709901039 479514 176013

TURBOTURBOS REMANUFACTURED TURBOCHARGER

This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.

Fits the following:

Part Number: 176013
Interchangeable Number: 12709901039, 1270 990 1039, 1270-990-1039, 179514, 479514
OEM Number: 1848300C92, 1848300C93, 1848300C94, 1848300C95, 1848300C96, 1848300C97, 1848300C98, 1848301C1, 1848303C1, 1848303C2, 1848303C3, 5010361R92, 8C3Z-6K682-A, 8C3Z6K682A, 8C3Z-6K682-AARM, 8C3Z6K682AARM, 8C3Z-6K682-B, 8C3Z6K682B, 8C3Z-6K682-CRM, 8C3Z6K682CRM, 8C3Z-6K682-DARM, 8C3Z6K682DARM, P1848300C96, P4307200R1
Turbo Model: BV70, V2S

Year: 2006-12
Engine: V114 Power Stroke
Displacement: 6.4L, 6400 ccm
Power: 261 kW/350 HP
Speed: 3000 RPM

Actuator Kit (12V): 59001107387 (5900-110-7387)
Back Plate: 12657100500 (1332002300)
Bearing Housing: (Oil Cooled)(1900011387)
Bearing Housing: 175411 (Oil Cooled)(1900011388)
CHRA (High Pressure Stage B2V): 175416 (179519, 475416, 479519, S175412N)(1000-070-039, 1000070039)
CHRA (Low Pressure Stage B3): 175412 (179526, 475412, 479526, S175416N, 1332-003-900, 1332003900)(1000070040)
Compressor Wheel: 175239 (Ind. 64.44 mm, Exd. 92.32 mm, Trim 13.13, 7+7 Blades, Super Back)(1200-016-527)
Compressor Wheel: 175417 (Ind. 51.96 mm, Exd. 74.29 mm, Trim 12.85, 7+7 Blades, Super Back)(1332002402, 1200016526)
Electronic Actuator: 176840 (476840, 5900-110-7387, 59001107387, 8C3Z-9J559-ARM, 8C3Z-9J559-BA, 8C3Z9J559ARM, 8C3Z9J559BA)
Gasket Kit: GS33566 (8C3Z9T514C, 8C3Z 6N640-B, 1873429C92, 1873429C96, W302511, W302512, 904-263, 904263, 2K220)
Installation Kit: 179618
Nozzle Ring: (3000016074)
Overhaul Kit (B2): 12007110028 (1200-711-0028)
Overhaul Kit (B3): 13007110008 (1300-711-0008)
Repair Kit (High Pressure): 1640301-2
Repair Kit (Low Pressure): 1640301-1
Repair Kit (Major): (1332002755)
Repair Kit: (5000040037)
Turbine Wheel: (Ind. 79.75 mm, Exd. 73.45 mm, Trim 13.38, 10 Blades)(1100016379)
Turbine Wheel: 12701205001 (Ind. 69.97 mm, Exd. 62.61 mm, Trim 8.63, 11 Blades)(1332-002-438, 1270-120-5001, 2100011872)
Turbocharger (High Pressure Stage (R2S) B2V Without Actuator): 176466, 479515
Turbocharger (Low Pressure Stage (R2S) B3): 177100, 479523
Two-Stage Charging System (R2S) Remanufactured V2S: 479514

NOTE: Electronic Smart Remote Actuator. Twin turbo. V2S, B2V and B3, DPF.

Application:
2006-12 Ford F-250, F-350, F-450, F-550 Truck with Navistar V114 Power Stroke Engine
2006-12 International Industrial with Navistar V114 Power Stroke Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
