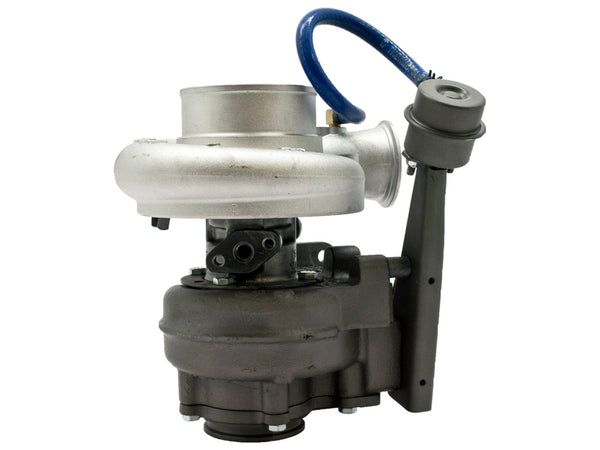

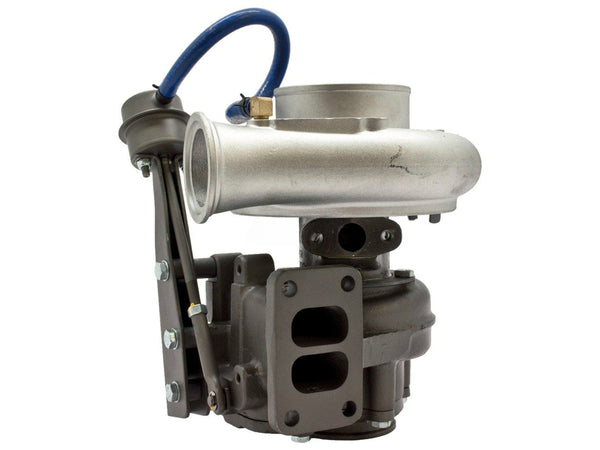

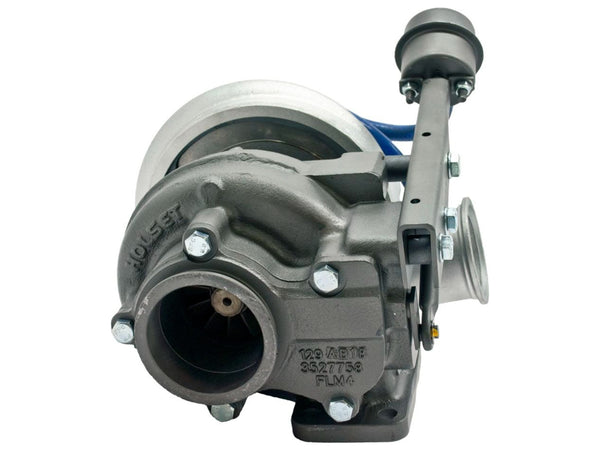

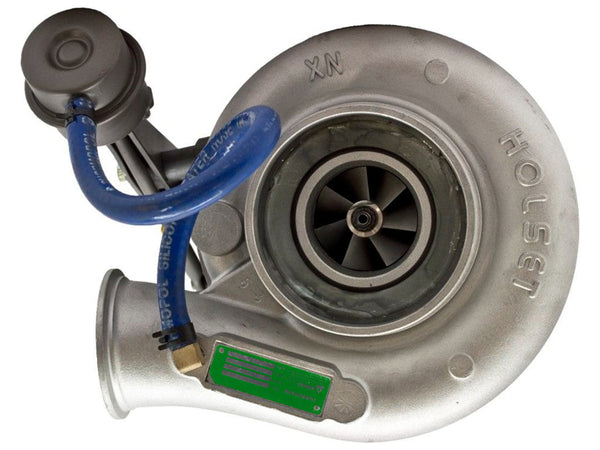

HX35W Turbo Komatsu PC220 Excavator Cummins 6B 6BTAA 6BTA5.9 5.9L Diesel 4038471

TURBOTURBOS REMANUFACTURED TURBOCHARGER

This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.

Fits the following:

Part Number: 4038471
Interchangeable Number: 3595159, 3598036, 4035375, 4035376, 4035376H
OEM Number: 4089136, 4089746, 6738-81-8190, 6738818190, 6738-81-8191, 6738818191, 6738-81-8192, 6738818192
Turbo Model: HX35W, HX35W-E7735L/E12PB11

Year: 2001-04
Engine: 6B, 6BTAA, 6BTA5.9-C169, SAA6D102E-2
Engine Manufacturer: Cummins, KCEC
Displacement: 5.9L, 5900 ccm
Fuel: Diesel

Angle α (Compressor Housing): 160°
Angle β (Turbine Housing): 20°
Actuator Kit (Pneumatic): 4030123H/4031488H
Bearing Housing: 3532632/4027869
Bracket Kit: 4027137H
CHRA: 4027883 (4027883H)
Clamp Plate (Turbine): 2839879H
Compressor Wheel: 3599639 (Ind. 50 mm, Exd. 83 mm, 8+8 Blades)
Gasket (Oil Drain): 3519805H
Gasket (Oil Outlet): 210060 (311585, 148062)(Paper)
Gasket (Turbine Inlet): 409039-0000 (Inox Steel)(409039-0001, 210019, 2405022)(1900000006)
Gasket (Turbine Outlet): 3535001H
Gasket Kit: 3545575H
Heat Shield: 3519304 (3519302)(1152301340)
Repair Kit (Major): 3575169 (3575169H)(1153035750)
Retaining Ring: 3533163H
Seal Plate: 3530923 (1154351300)
Turbine Housing: 3532299H
Turbine Wheel: 3519336 (Ind. 70 mm, Exd. 59.9 mm, 12 Blades)(1152301435)
Turbocharger Kit: 4035376H

NOTE: Interchangeable with 5328623 but with compressor housing angle rotated.

Application:
2001-04 Komatsu PC220 Excavator with KCEC 6B, 6BTAA Engine
2001-04 Komatsu PC220, PC270 Excavator with Cummins 6BTA5.9-C169, SAA6D102E-2 Engine
Hyundai R210W-9S, R260LC-9S Excavator

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
