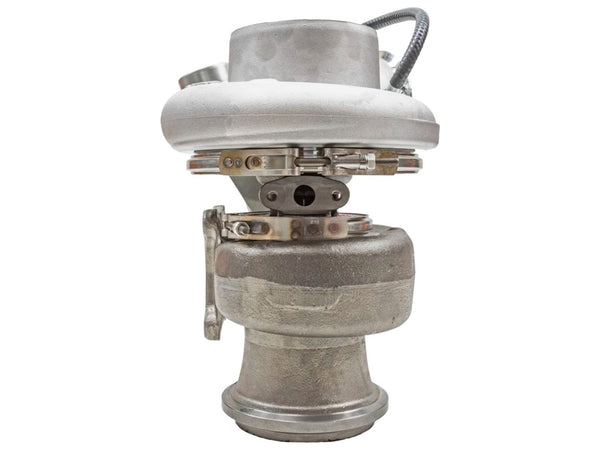

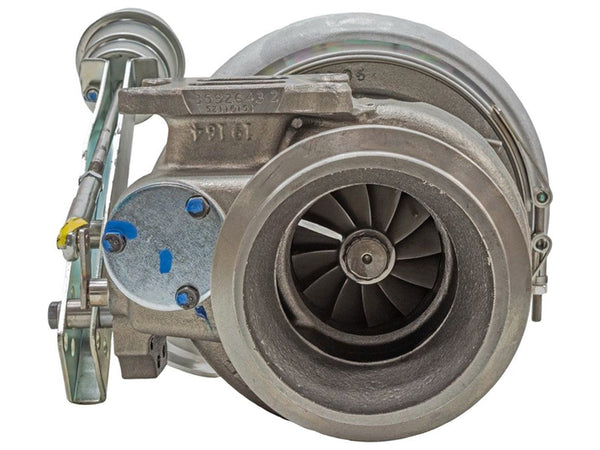

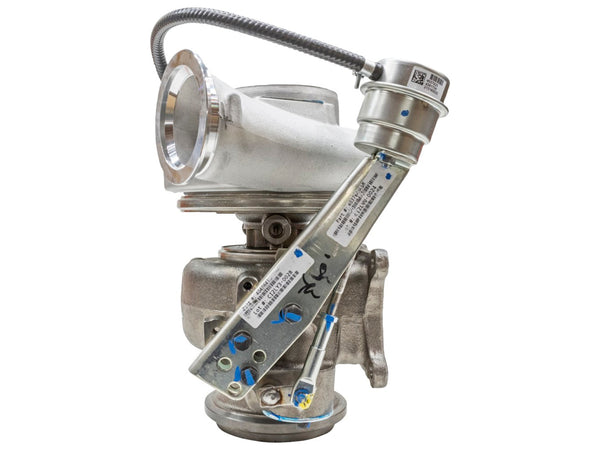

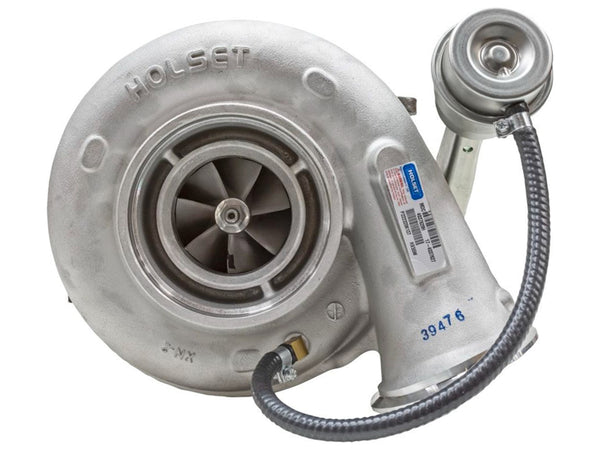

NEW Holset HX55W Turbo Industrial Cummins QSM 2/3 ISM M11 QSM11 4037628 4037627

BRAND NEW GENUINE HOLSET TURBOCHARGER

This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

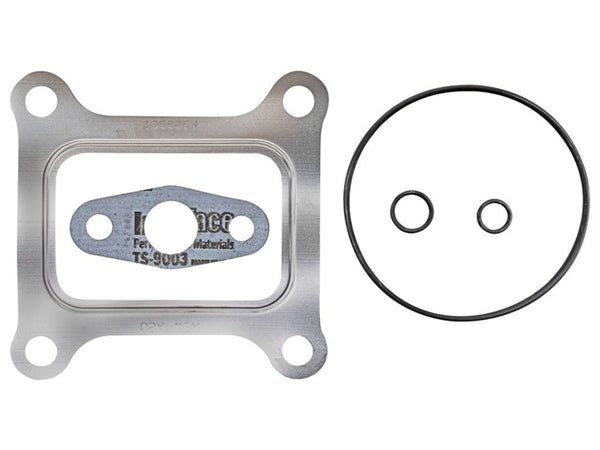

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 4037627
Interchangeable Number: 4037628H, 408985900
OEM Number: 4037628, 4089859
Turbo Model: HX55W, HX55W-C98K72RU/C86L90PH19J-W2
Manufacturer: Holset

Year: 2003-
Engine: ISM, M11, QSM 2/3, QSM11
Engine Manufacturer: Cummins
Emission Standard: Tier 3
Fuel: Diesel

Angle α (Compressor Housing): 330°
Angle β (Turbine Housing): 270°
Actuator: 4037623 (4037622, 4030835)
Back Plate: 3528096 (1153055300)
Bearing Housing: 3535575 (3535575H, 353557500, 3535704)(Oil Cooled)
Bracket Kit: 4030841H
CHRA: 4032690 (4032690H, 3768413)
Compressor Cover: 4036914
Compressor Wheel: 4035887 (4035887H, 3596135, 4036317)(Ind. 71 mm, Exd. 99.01 mm, Trim 51, 6+6 Blade)
Gasket (Oil Inlet): 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)
Gasket (Oil Outlet): 210060 (311585, 148062, 409267-0003, 409267-0002, 210060-0000, 51914)(Paper)
Gasket (Turbine Inlet): 409039-0000 (409039-0001, 210019, 2405022, 210847)(1900000006)(Inox Steel)
Gasket (Turbine Outlet): 210245 (Inox Steel)
Gasket Kit: 4032517 (3800279H)
Heat Shield: 3529846 (3533038)(1153055340)
Repair Kit (Major): 3580762 (3580762H, 3575181, 3533038)(1153055750, 5000020023)
Turbine Housing: 3592774
Turbine Wheel: 3535983 (3535983H)(Ind. 85.8 mm, Exd. 76.95 mm, 12 Blades)(1153055436)
Turbocharger Kit: 4037628H

Application:
2003- Various with Cummins QSM 2/3 Engine
Industrial with Cummins QSM 2/3 Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
